Omni-channel Payment

NFC
Payment
Stripe Card
Payment
IC card
Payment
QR Code
Payment

High-speed processor, multiple connectivity options

3.5" Color display

The 3.5-inch touch screen provides you with a vivid viewing experience

Camera Scanner

The 0.3 Megapixel rear camera can read any 1D or 2D code quickly and efficiently

The high-speed printer makes every transaction fast and convenient

Ultra-long battery life

With a 5200 mAh large-capacity battery, FEITIAN T20 allows merchants to focus on the business throughout the day

Application Industries

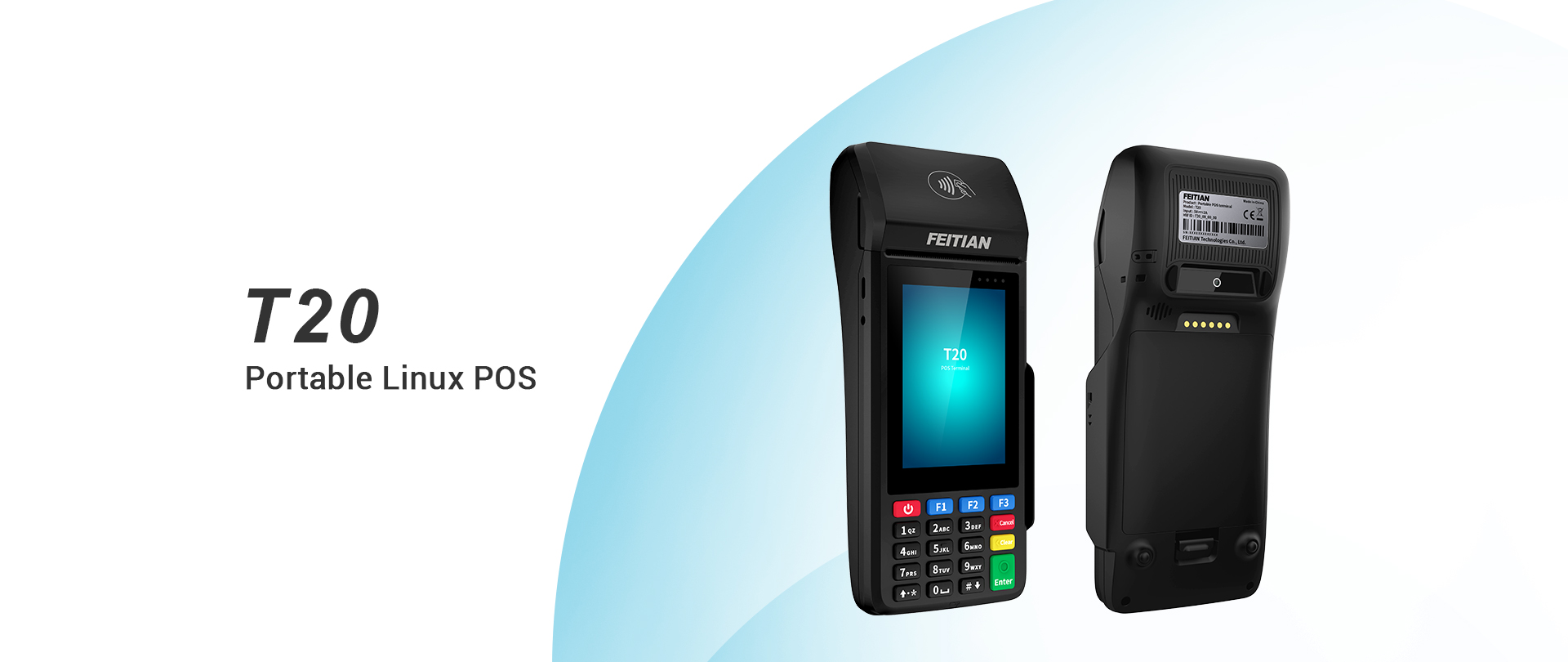

T20 Product Specification
Security OS

Linux

Processor

Dual-Core 2*A53@1.3GHz

Memory

RAM: 256MB / ROM: 512MB

Physical

198.2mm (L)*80.7mm (W)*53.6mm (H)

Wifi

WiFi 2.4GHz

Bluetooth

BT4.2 (BR/EDR+BLE)

GPS

GPS, GLONASS

Camera

Rear: 0.3MP FF, Support 1D/2D barcode

Display

3.5 inch, 320*480, TFT

Card Slot

Normal SIM*2 + PSAM*2 + TF Card*1

Battery

3.7V/5200mAh

Adapter

Input: 100-240V AC, 50/60Hz 0.35A
Output: 5V DC/2.0A

Magnetic

Conform to ISO 7810/7811/7813, Track 1/2/3, Bi-directional swiping

IC

EMV L1/L2, Conform to ISO 7816, 1.8V/3V/5V

NFC

13.56MHz, ISO/IEC 14443, ISO/IEC 18092, Type A&B, Felica, Mifare card

QR Code
Peripheral Ports

Type C*1 (USB2.0, OTG)

Environmental

Operating Temperature: -10°C ~ 50°C (14°F~122°F)
Storage Temperature: -20°C ~ 70°C (-4°F~158°F)
Relative Humidity: 5%-96% (Non-Condensing)

Printer

High-speed thermal printer, Printer Paper size: 58mm*40mm

Certifications

PCI, EMV L1&L2, EMV Contactless L1, Paypass, PayWave, Amex, Discover, Pure, qUICS, CE, TQM, DGM, UN38.3, MSDS, GSMA, WEEE, NTRA-VOC

Download T20 brochure
