Omni-channel Payment

NFC
Payment
Stripe Card
Payment
IC card
Payment
QR Code
Payment

Unparalleled performance, excellent quality

  • 5.0 inch,720 x1280, IPS
  • Accepts contactless, chip, swipe, NFC, QR payments
  • Reads 2D barcodes and QR codes

QuadCore, 4x2.0G, A53

Multiple interfaces are used for various scenarios

RS232*2, RJ45*1, USB-A*1, USB-C*1, SMA*1, MDB-S*1, MDB-M&EXE*1, Audio jack*1, PWR-Dig.I/O *1, HDMI*1, TF-Card*1

Excellent stability and reliability in the toughest environments

Operates flawlessly in harsh conditions, supporting temperature ranges of -20℃ to +70℃, with IP65 environmental and IK08 impact protection.

-20°C to +70°C

IP65

IK08

Adaptive brightness for all conditions

The M200 utilizes its proximity sensor and light sensor to wake the terminal and detect changes in ambient light as well as the presence of nearby users without any physical contact. This allows for automatic brightness adjustment, optimizing power consumption for energy efficiency and environmental protection.

Global Certification Guarantees Your Business Security

M200 has successfully obtained crucial financial payment certification,
guaranteeing the utmost security for every transaction

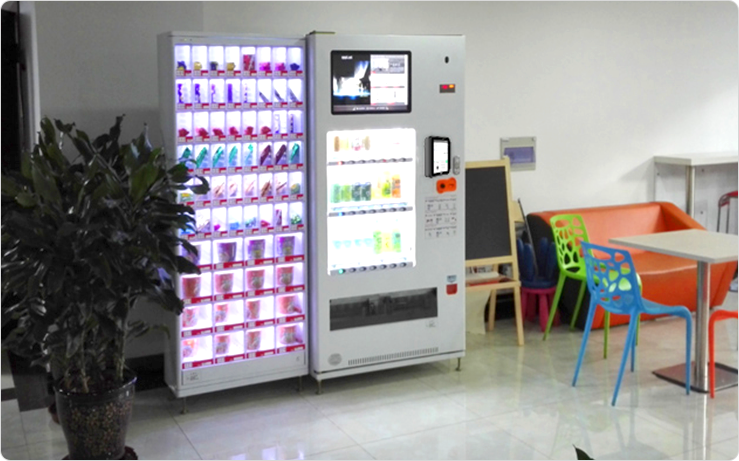

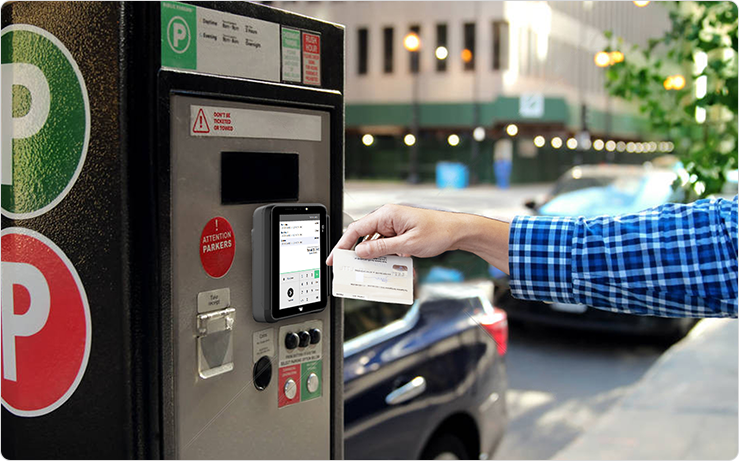

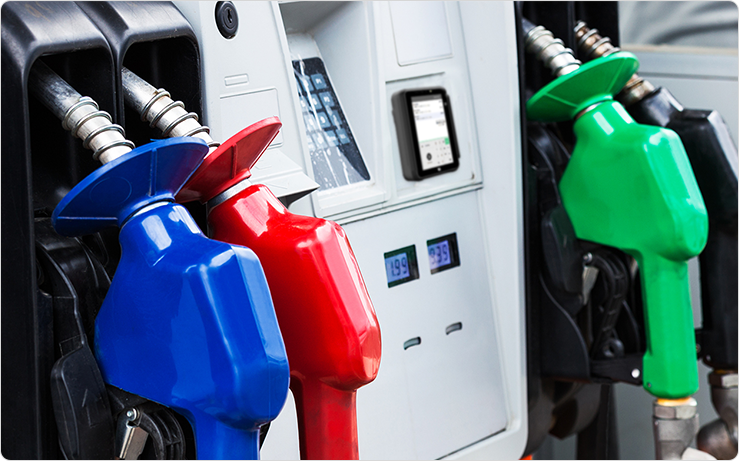

Widely applicable scenarios

The M200 offers exceptional security, stability, and reliability across a wide range of
applications, including self-service shopping, laundry services, vending machines,
gas stations, parking lots, ticketing systems, and more.

Self-helpshopping
04
03
02

Application Industries

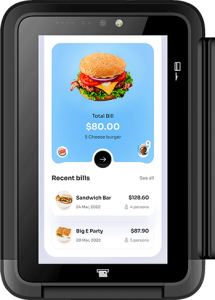

M200 Product Specification
Security OS

Android11

Processor

Quad-Core 4*A53@2.0GHz

Memory

RAM: 2GB + ROM: 16GB

Physical

146mm (L)*105mm (W)*57mm (H)

Wifi

Wi-Fi 5: 2.4/5GHz

Bluetooth

BT4.2 (BR/EDR+BLE)

GPS

GPS, BDS, GLONASS

Camera

Front: 2MP FF, Support 1D/2D barcode

Communications

4G+3G+2G

Display

5.0 inch, HD IPS LCD, 720*1280 Pixel, Multi-touch

Card Slot

SIM*2 + PSAM*2

Peripheral Ports

RS232-A*1(RJ45), RS232-B*1(RJ45), LAN*1(RJ45), Type A*1 ,Type C(USB2.0, OTG), 4G SMA*1 , MDB-S*1, MDB-M EXE*1, PWRDIG.I/O*1, HDMI*1, TF-card*1

Magnetic

ISO/IEC 7811, ISO/IEC 7813, Track 1/2/3, Bi-directional swiping

IC

ISO/IEC 7816, Conform to EMV L1/L2

NFC

13.56MHz, ISO/IEC 14443, ISO/IEC 18092, Type A&B, Felica, Mifare card

QR Code
Power

Input: 100-240V AC, 50/60Hz 1.5A Output: 24.0V DC/2.7A

Environment

Operating Temperature: -20°C ~ 70°C (-4°F~158°F)
Storage Temperature: -30°C ~ 80°C (-22°F~176°F)
Relative Humidity: 5%-96% (Non-Condensing)

Weight

723g

Certifications

PCI, EMV L1&L2, EMV Contactless L1, Paypass, PayWave, Amex, Discover, qUICS, JCB, EFT POS, AUSPAY, MIR, Pure, TQM, FCC, CE, RoHS, IP65, IK08, ATEX(Exic II 3G Exic IIB T4 Gc), GSMA, WEEE, CB, NTRA-VOC, DGM, UN38.3, MSDS

Download M200 brochure
