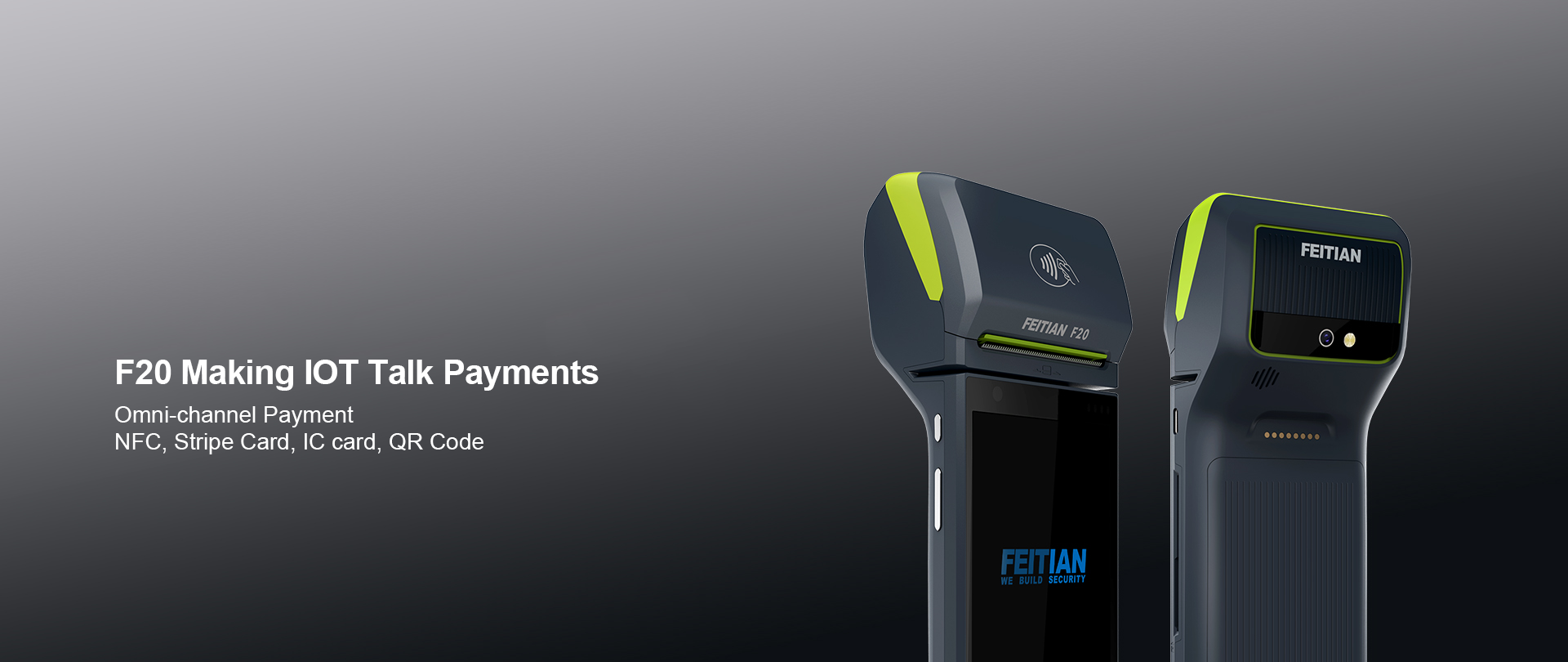

F20 Making IOT Talk Payment

Omni-channel Payment
NFC, Magstripe Card, IC Card, QR Code

Omni-channel Payment

NFC
Payment
Stripe Card
Payment
IC card
Payment
QR Code
Payment
Android 10 OS, high performance processor and stable network bring smooth and stable operation experience

FEITIAN F20 All-in-one Financial Terminal

Android10, high-speed printer, high-voltage battery, smart design, all kinds of reliability tests,
embedded fingerprint module and so many more are integrated into a smart wireless terminal,
FEITIAN F20 for better business.

Powerful thermal printer enables fast order printing at anytime and anywhere

Application Industries

F20 Product Specification
Security OS

Android10

Processor

Quad-Core, 4×1.3G, A53

Memory

RAM: 2GB /ROM: 16GB

Physical

212.6mm (L) × 79.1mm (W) × 51.9mm (H)

Wifi

2.4GHz/5GHz

Bluetooth

BT4.2 (BR/EDR+BLE)

GPS

GPS, Beidou, Galileo/GLONASS

Cameras

Rear: 8MP AF with Flash Support Scanner 1D&2D code & QR Code Front: 2MP FF

Printer

High-speed thermal printer, Paper size: 58×40mm

LCM

5.5" (720 × 1280), IPS

Card Slot

SIM*2 + PSAM*1

Battery

7.6V/2500mAh
(Equal to 3.8V/ 5000mAh)

MSR

ISO/IEC 7811, ISO/IEC 7813, Track 1/2/3, Bi-directional swiping

IC

ISO/IEC 7816, Conform to EMV L1/L2

NFC

13.56MHz, ISO/IEC 14443, ISO18092, Type A&B, Felica, Mifare card

QR Code
Power

Input: 100-240V AC, 50/60Hz 0.35A
Output: 5V DC/2.0A

USB

Type C*1(USB2.0, OTG)

Weight

427g

Certifications

PCI, EMV L1&L2, EMV Contactless L1, Paypass, Paywave, AMEX ExpressPay, Discover, JCB, Pure, QUICS, Rupay, NSICC, TQM, RoHS, CE, BIS, WEEE, CB, WPC, BIS, DGM, UN38.3, MSDS, NTRA-VOC, GSMA, Telec&JATE, ANRT, CMC

Download F20 brochure
