Small and smart,diversified payment methods

NFC
payment
Stripe Card
Payment
IC card
Payment
QR Code
Payment

Anytime,anywhere your businessis on the go

4G-icon
4G/3G/2G
wifi-icon
Wifi 5G/2.4G
lanya-icon
BT 5.0

Smaller but smarter,bring exceptional performance

Greatly improve payment efficiency in various scenarios from restaurant to retail,from transportation to public utilities

Proven reliability,ideal for harsh environment

F300 has passed various hardware reliability tests and been proven to be reliabile to use in various environment

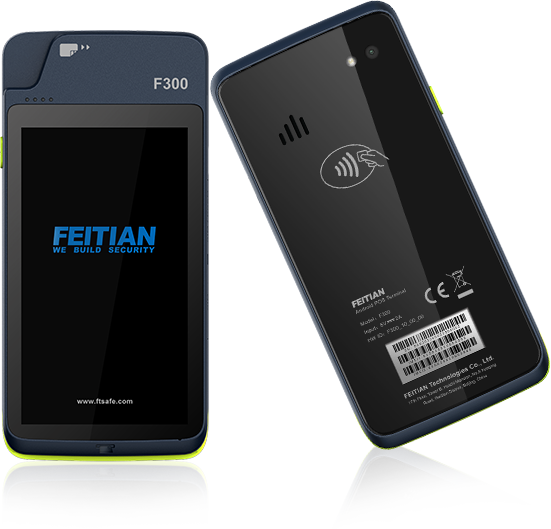

F300 Product Specification

Security OS

Android 14

CPU

Quad-Core 4*A53@2.0GHz

Memory

RAM: 2GB + ROM: 8GB(optional: 2GB + 16GB)

LCM

4.0 inch, IPS LCD, 800*480 Pixel, Multi-touch

Wifi

2.4G

Bluetooth

BT5.0 (BR/EDR+BLE)

GPS

GPS, BDS, Galileo, GLONASS, QZSS, SBAS

Rear Camera

Rear: 2MP FF with Flash LED Support 1D/2D barcode

RF Band

4G/3G/2G

Payment

QR Code
Payments

Card Slot

SIM*1 + PSAM*1

IC Card

ISO/IEC 7816, Conform to EMV L1/L2

Magnetic

ISO/IEC 7811, ISO/IEC 7813, Track 1/2/3, Bi-directional swiping

Battery

3.8V/2800mAh(Built-in battery)

NFC

13.56MHz, ISO/IEC 14443, ISO/IEC 18092, Type A&B, Felica, Mifare card

Peripheral Port

Type C*1 (USB2.0, OTG)

Physical

135.5mm (L)*65mm (W)*16.5mm (H)

Weight

174g

Environment

Operating Temperature: -10°C ~ 50°C (14°F~122°F) Storage Temperature: -20°C ~ 70°C (-4°F~158°F) Relative Humidity: 5%-96% (Non-Condensing)

Certifications

PCI, EMV L1&L2, EMV Contactless L1, Paypass, PayWave, JCB, Amex, Discover, Pure, qUICS, Rupay, AuspayNET, EFT POS, NSICCS, TQM, WPC, CE, FCC, ANRT, CB, CMC, RoHS, BIS, DGM, UN38.3, MSDS, NTRA-VOC, GSMA, Google Smart Tap, WEEE

Download F300 brochure
