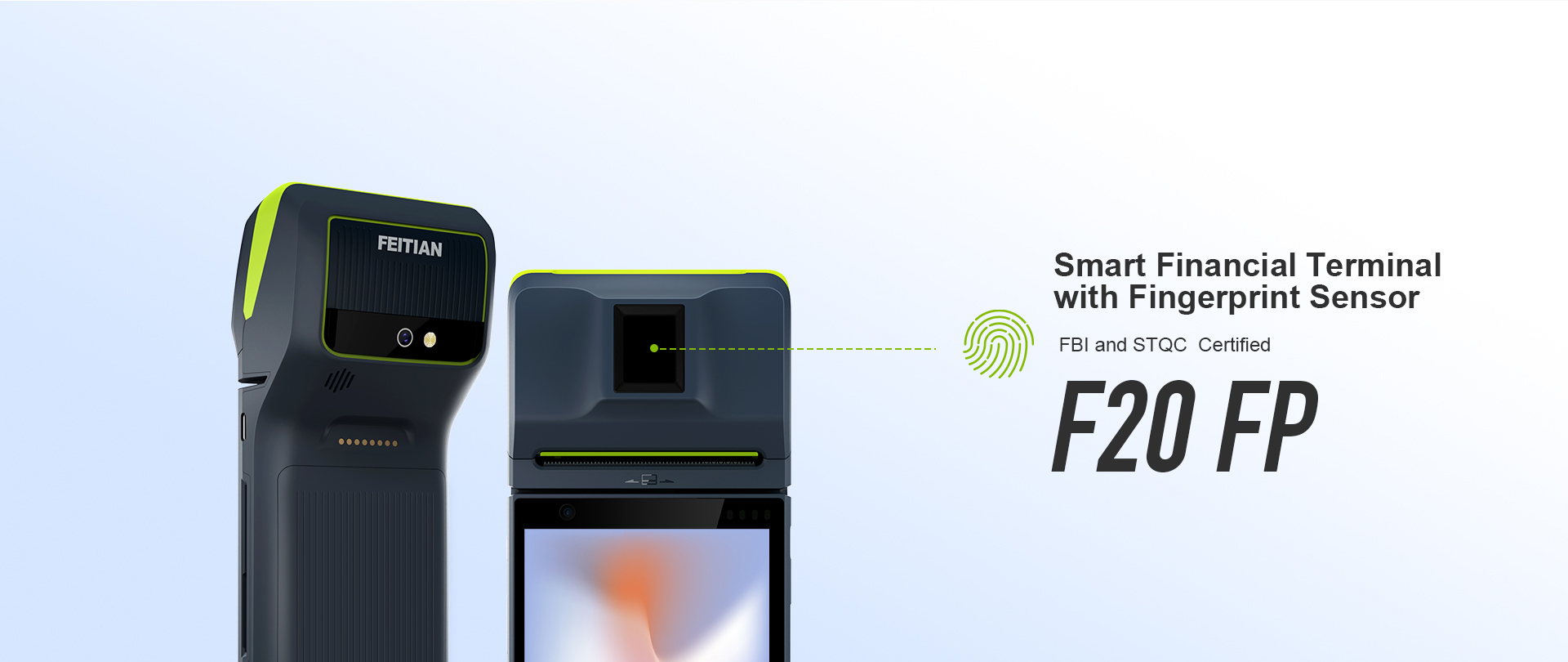

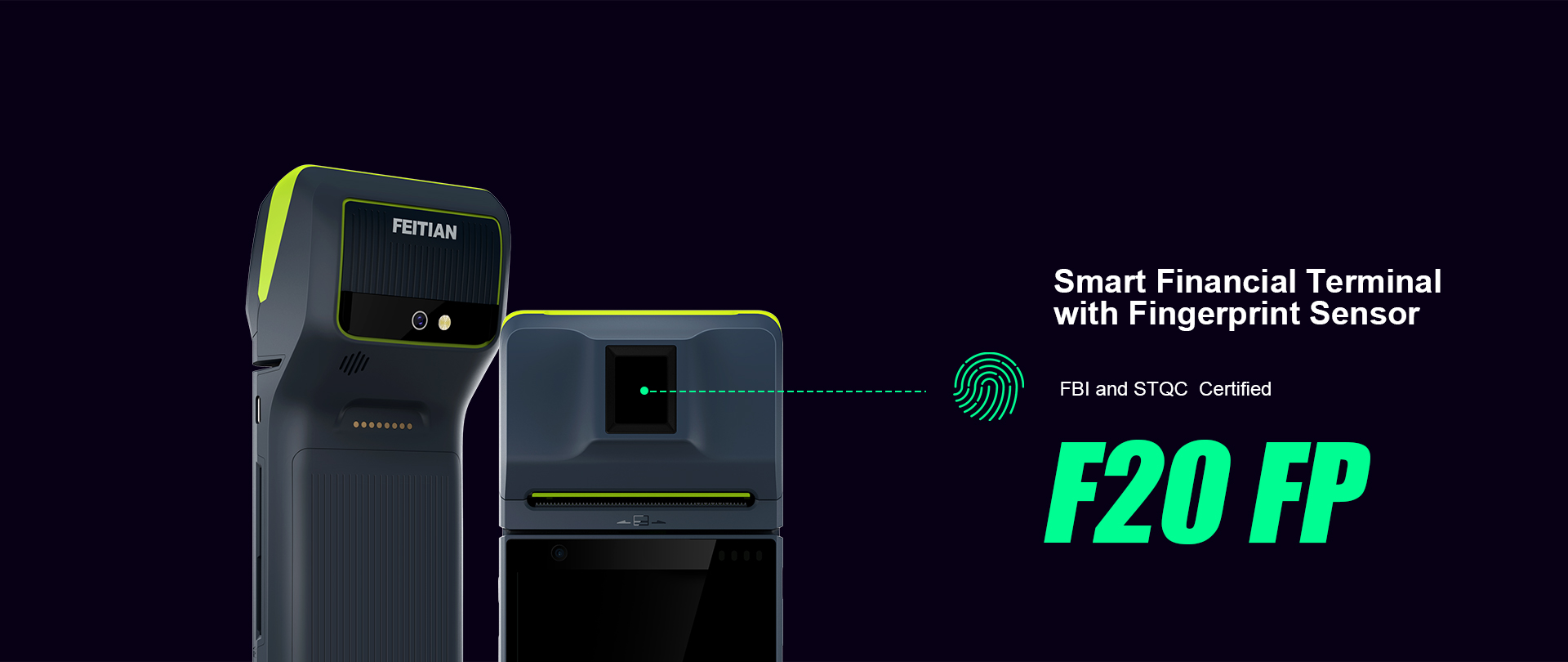

Equipped with fingerprint sensor

F20 FP enables fast fingerprint reading
and identification and realizes
customer-onboarding with ease.

Android 14 OS, high performance processor and stable network bring smooth and stable operation experience

2+16GB standard memory configuration

expands business without limitation

5.5 inch large screen brings

pefect operation experience

Rear and front cameras, 8M + 2M scanning codes and taking pictures become faster and more convenient

F20 FP Product Specification
Security OS

Android14

Processor

Quad-Core 4*1.3G,A53

Memory

RAM: 2GB+ROM: 16GB

Physical

212.6mm (L) *79.1mm (W) *55.5mm (H)

Wifi

Wi-Fi 5: 2.4&5GHz

Peripheral Ports

Type C*1 (USB2.0, OTG)

GPS

GPS, BDS, Galileo, GLONASS, QZSS, SBAS

Bluetooth

Bluetooth 5.0/BLE

Printer

High-speed thermal printer, Paper size: 58mm*40mm

LCM

5.5 inch, HD IPS LCD, 1440*720 Pixel, Multi-touch

Card Slot

SIM*2 + PSAM*1

Battery

7.6V/2500mAh
(Equal to 3.8V/ 5000mAh)

Magnetic

ISO/IEC 7811, ISO/IEC 7813, Track 1/2/3, Bi-directional swiping

IC

ISO/IEC 7816, Conform to EMV L1/L2

NFC

13.56MHz, ISO/IEC 14443, ISO18092, Type A&B, Felica, Mifare card

QR Code
Certifications

PCI, EMV L1&L2, EMV Contactless L1, Paypass, PayWave, Amex, Discover, JCB, Pure, qUICS, Rupay, NSICC, TQM, CPACE, AuspayNET, EFT POS, INTERAC, NAPAS, RoHS, CE, FCC, PTCRB, EAC, BIS, ATEX, WEEE, CB, WPC, DGM, UN38.3, MSDS, NTRA-VOC, GSMA, Telec, JATE, ANRT, CMC, Google Smart Tap, RNIB, EAA

Camera

Rear: 8MP AF with Flash Support Scanner 1D&2D code & QR Code
Front: 2MP FF

Power

Input: 100-240V AC, 50/60Hz 0.35A
Output: 5V DC/2.0A

Fingerprint
Download F20 FP brochure
