Omni-Channel Payment

Fingerprint
NFC
Payment
Stripe Card
Payment
IC card
Payment
QR Code
Payment

FBI & STQC certified fingerprint module

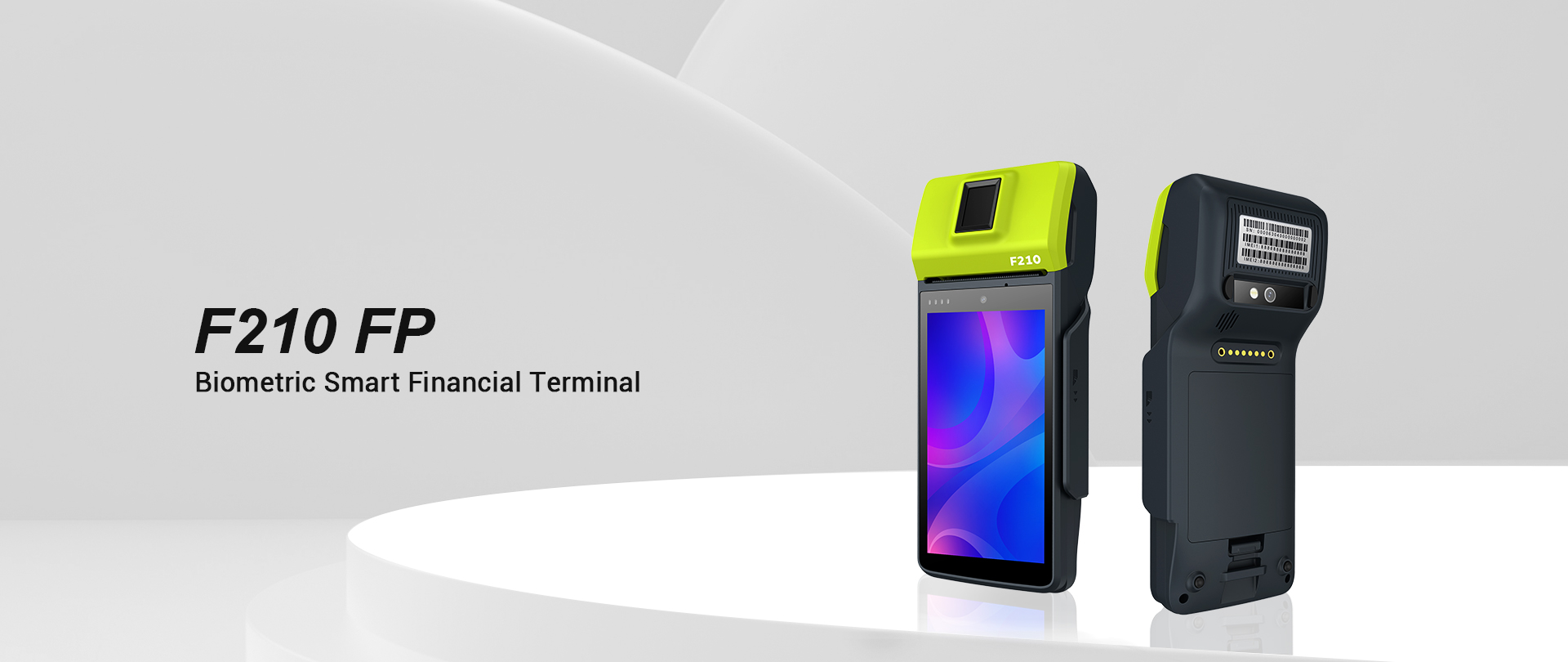

With FBI and STQC certification on biometric fingerprint , FEITIAN
F210 FP provides a safer and faster payment experience

Excellent performance, payment on the go

With high-performance processor and full communication capabilitie, F210 FP can easily get connected and make transactions all the time

Dual cameras

The 8MP +2MP rear and front cameras of F210 FP can not only scan 1D & 2D barcodes, but also perform face recognization and take photos

Smooth printing

Equipped with a high-speed thermal printer, FEITIAN F210 FP enables the fast and smooth receipt printing for customers

Application Industries

F210 FP Product Specification
Security OS

Android12

Processor

Quad-Core 4*A53@1.4GHz

Memory

1GB RAM + 8GB ROM (optional: 2GB + 16GB)

Physical

197mm (L)*82.1mm (W)*55.6mm (H)

Wifi

Wi-Fi 5: 2.4GHz (optional: 5GHz)

Bluetooth

BT4.2/BLE

GPS

GPS, BDS, GLONASS/Galileo

Camera

Rear: 2MP FF with Flash LED Support 1D/2D barcode (optional: Rear: 8MP AF with Flash LED Front: 2MP FF Support 1D/2D barcode)

Display

5.0 inch, IPS LCD, 480*854 Pixel, Multi-touch

Card Type

SIM*2 + PSAM*1 + TF Card*1 (up to 256GB) (Optional: eSIM*1 + SIM*1 + PSAM*1 + TF Card*1)

Battery

3.7V/5200mAh

Power

Input: 100-240V AC, 50/60Hz 0.35A
Output: 5.0V DC/2.0A

Magnetic

ISO/IEC 7811, ISO/IEC 7813, Track 1/2/3, Bi-directional swiping

IC

ISO/IEC 7816, Conform to EMV L1/L2

NFC

13.56MHz, ISO/IEC 14443, ISO/IEC 18092, Type A&B, Felica, Mifare card

QR Code
Fingerprint
Peripheral Ports

Type C*1 (USB2.0,OTG)

Weight

410g

Printer

Thermal Printer, Paper size: 58mm*40mm

Environment

Operating Temperature: -10°C ~ 50°C (14°F~122°F),
Storage Temperature: -20°C ~ 70°C (-4°F~158°F) ,
Relative Humidity: 5%-96% (Non-Condensing)

Certifications

PCI, EMV L1&L2, EMV Contactless L1, Amex, PayWave, Paypass, Discover, JCB, Pure, qUICS, MIR, Rupay, NTRA-VOC, WEEE, CE, FCC, CB, CMC, GSMA, TQM, ANRT, CCC, SRRC, Nal Certificate, UPTS3.0, PBOC3.0 L1&CL1, PBOC3.0 CL2, DGM, UN38.3, MSDS, WPC

Download F210 FP brochure
