Multi Dock
Multi Dock
Charging Cradle
Charging Cradle

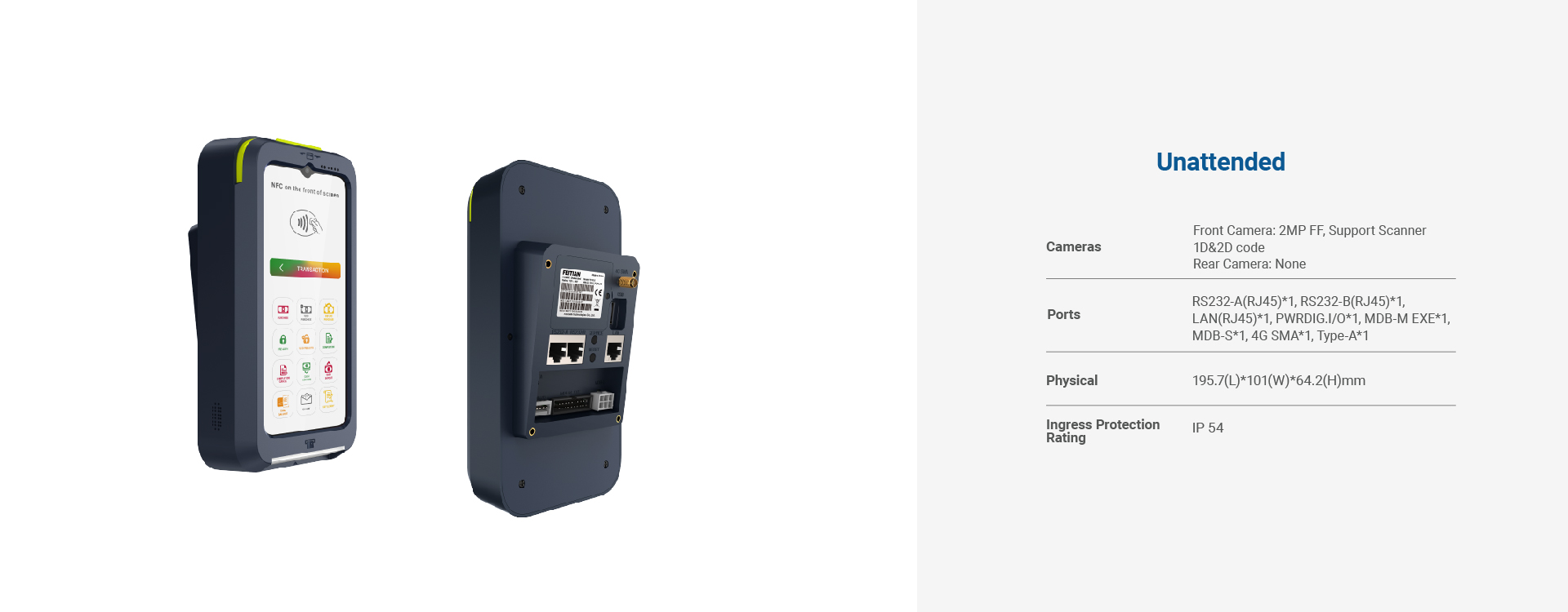

Unattended
Unattended

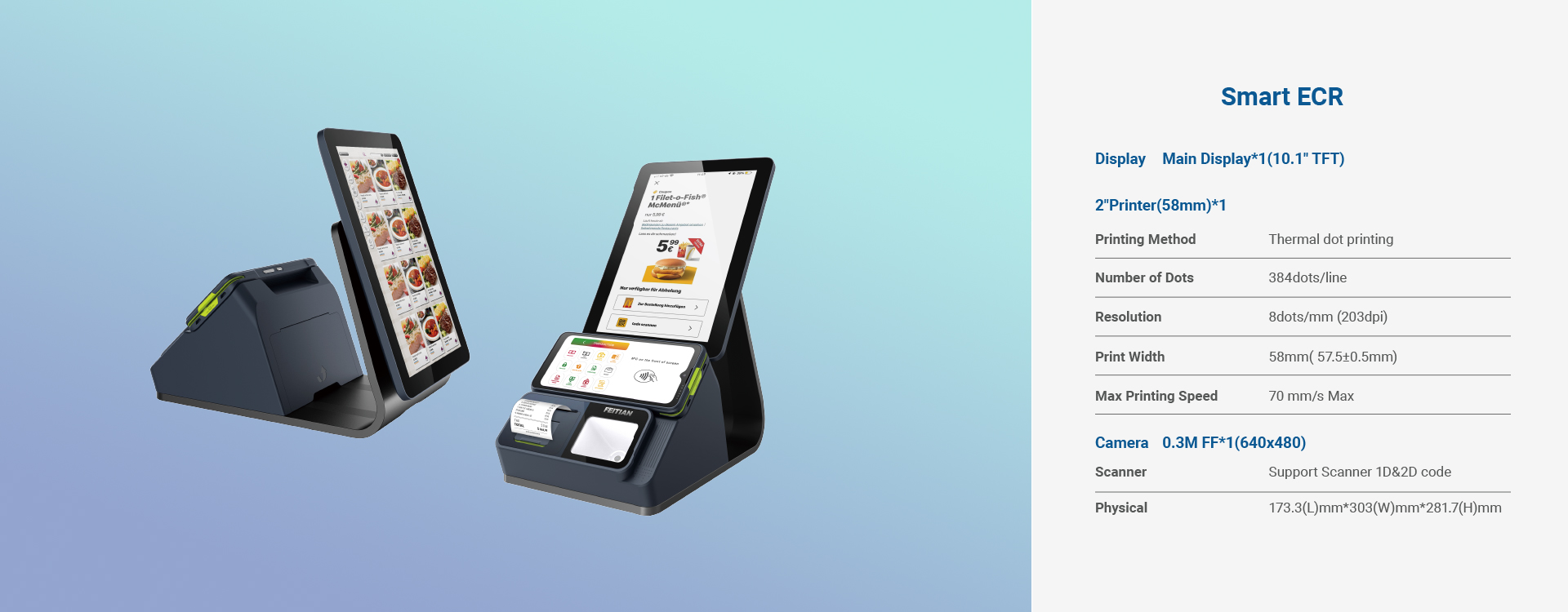

Smart ECR
Smart ECR
Silicone Cover
Silicone Cover

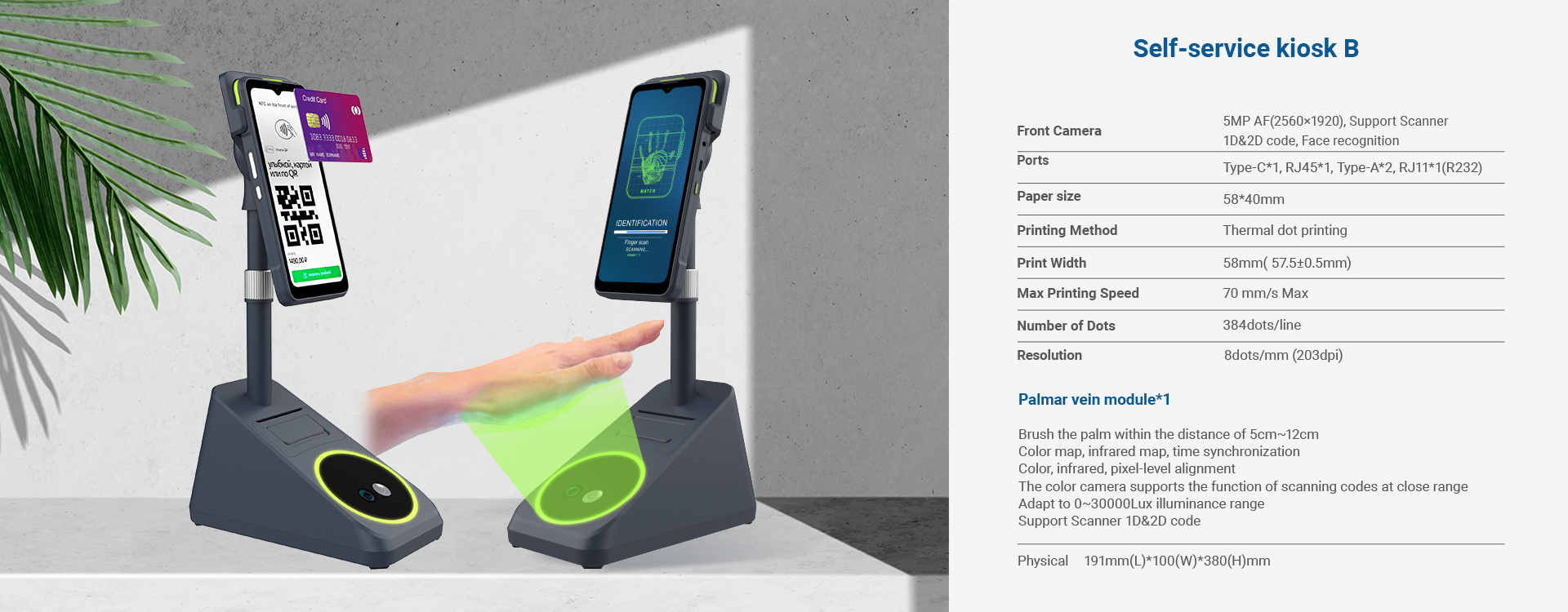

Self-service kiosk B
Self-service kiosk B

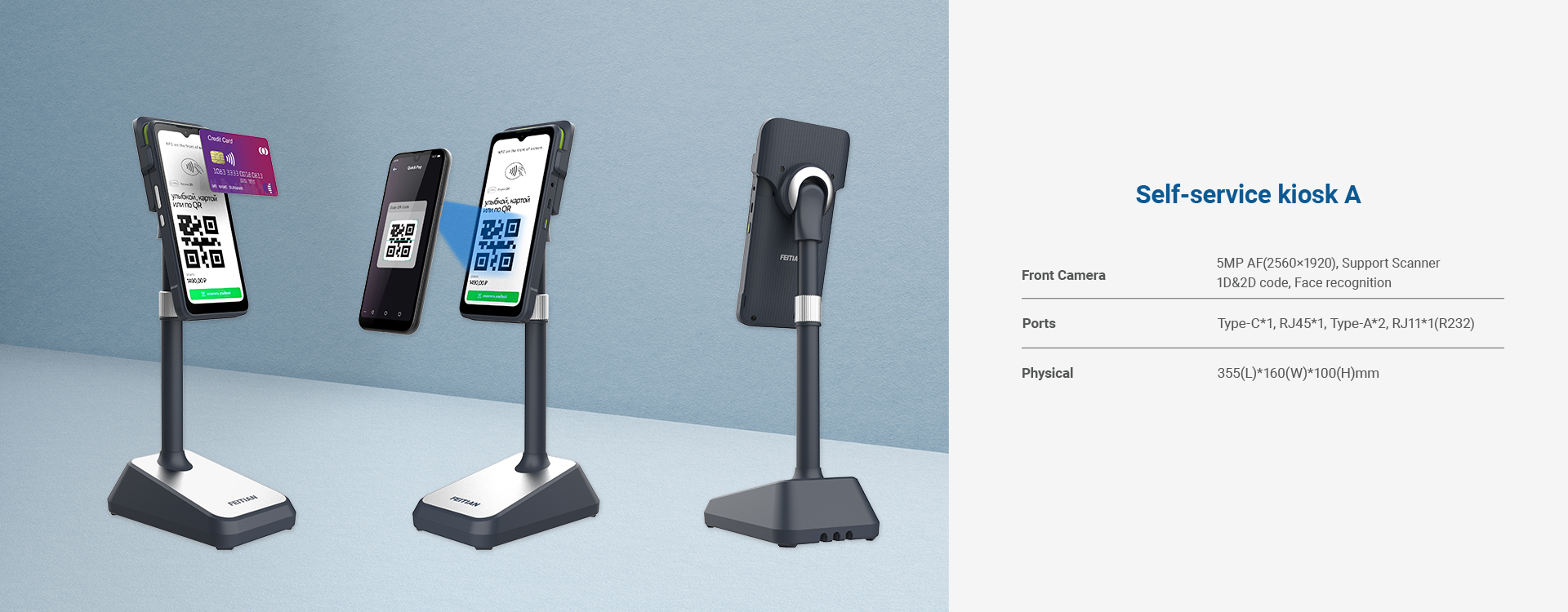

Self-service kiosk A
Self-service kiosk A

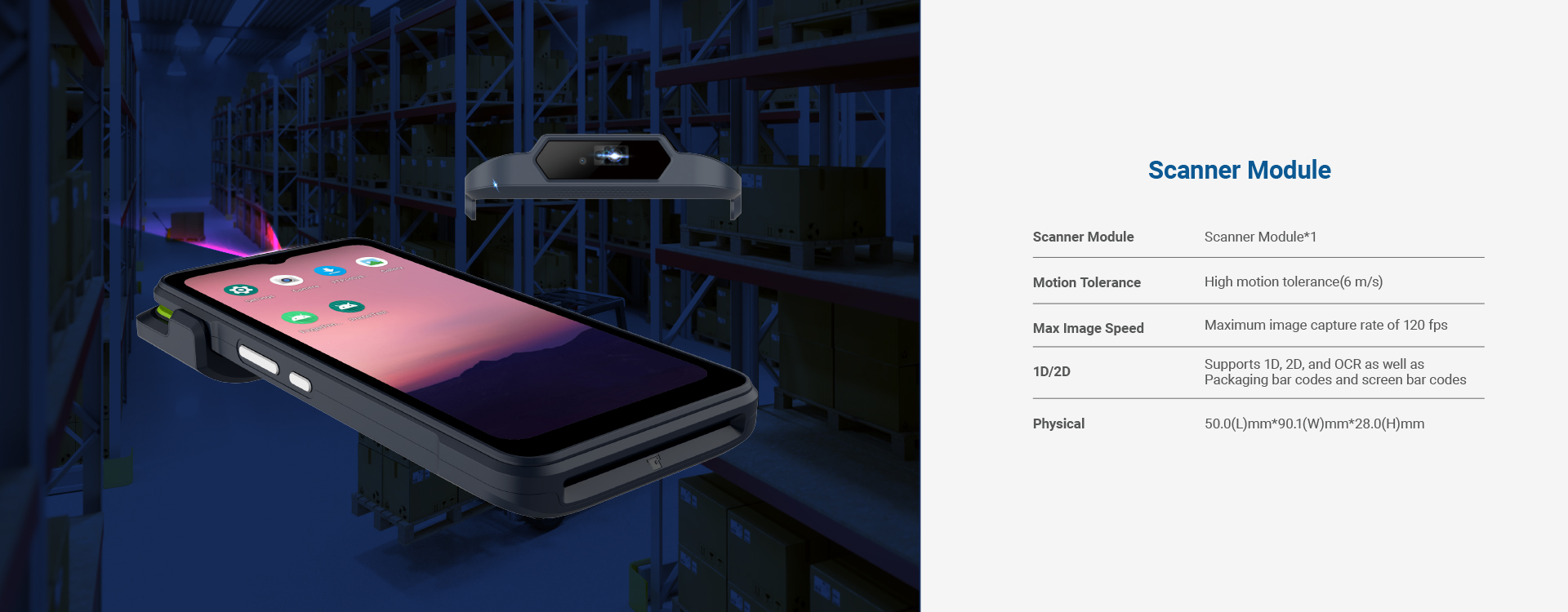

Scanner Module
Scanner Module

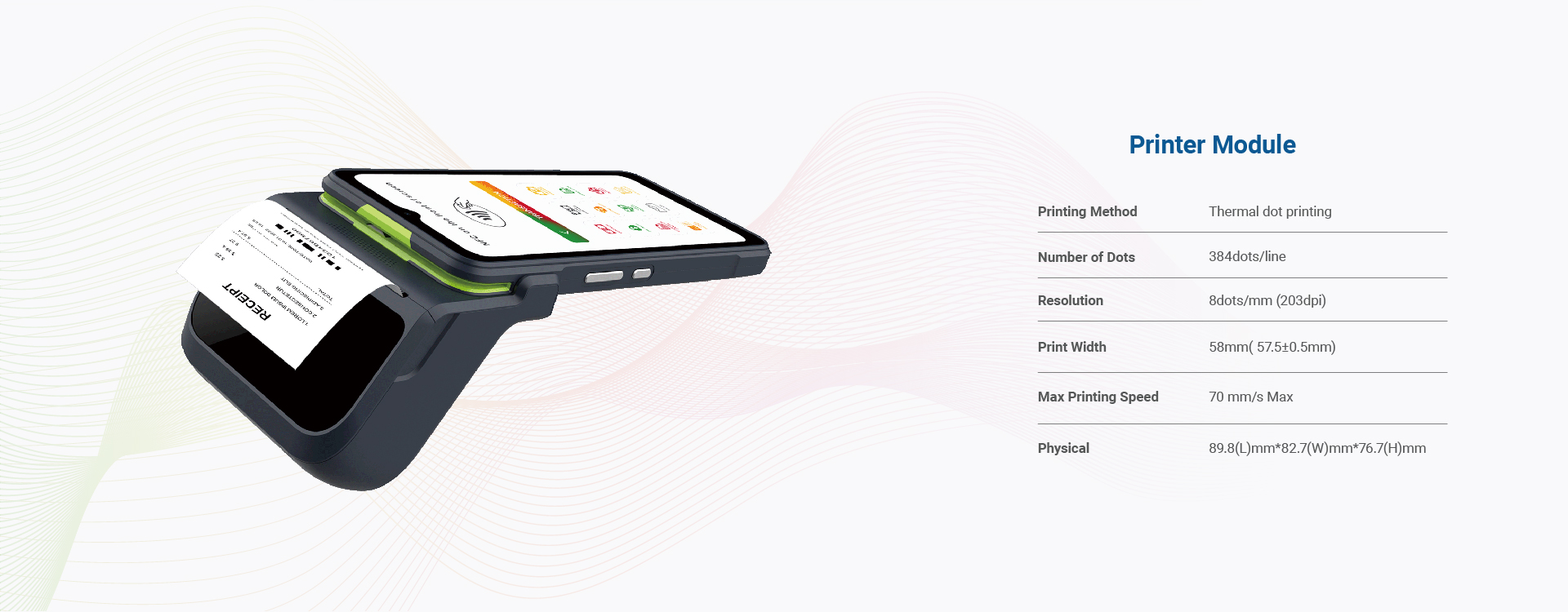

Printer Module
Printer Module

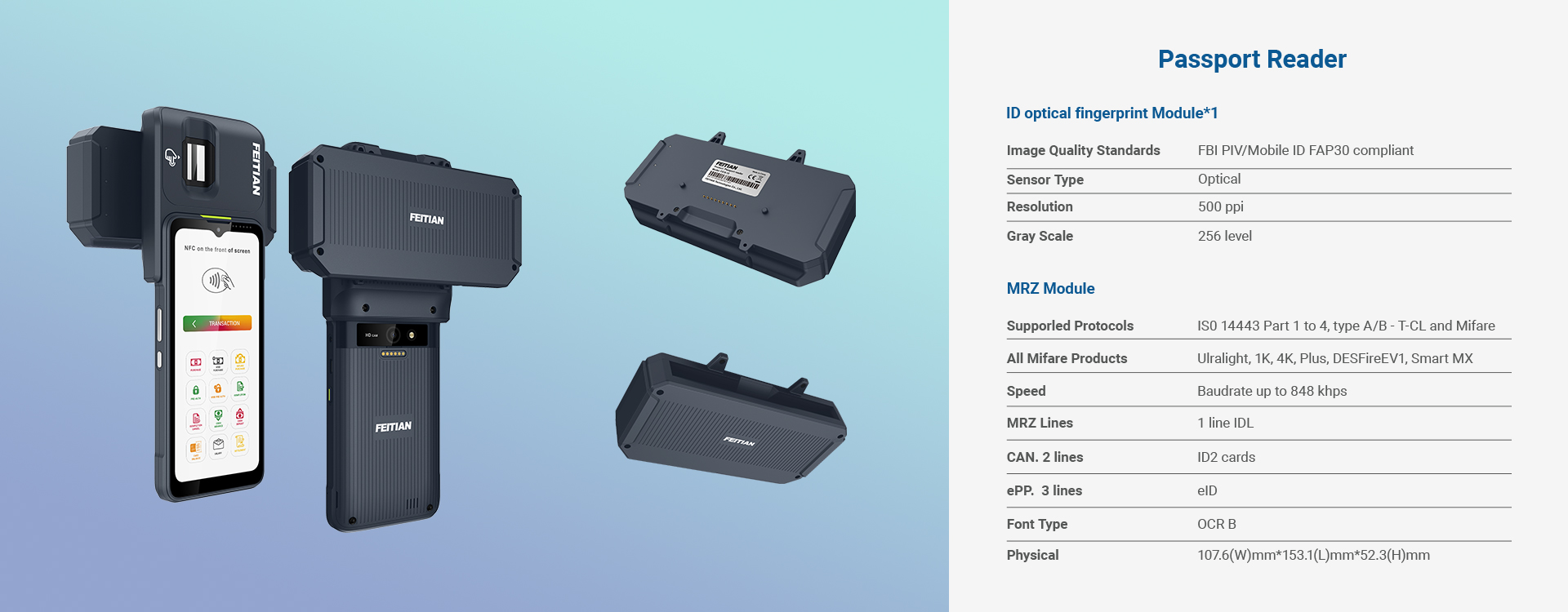

Passport Reader
Passport Reader

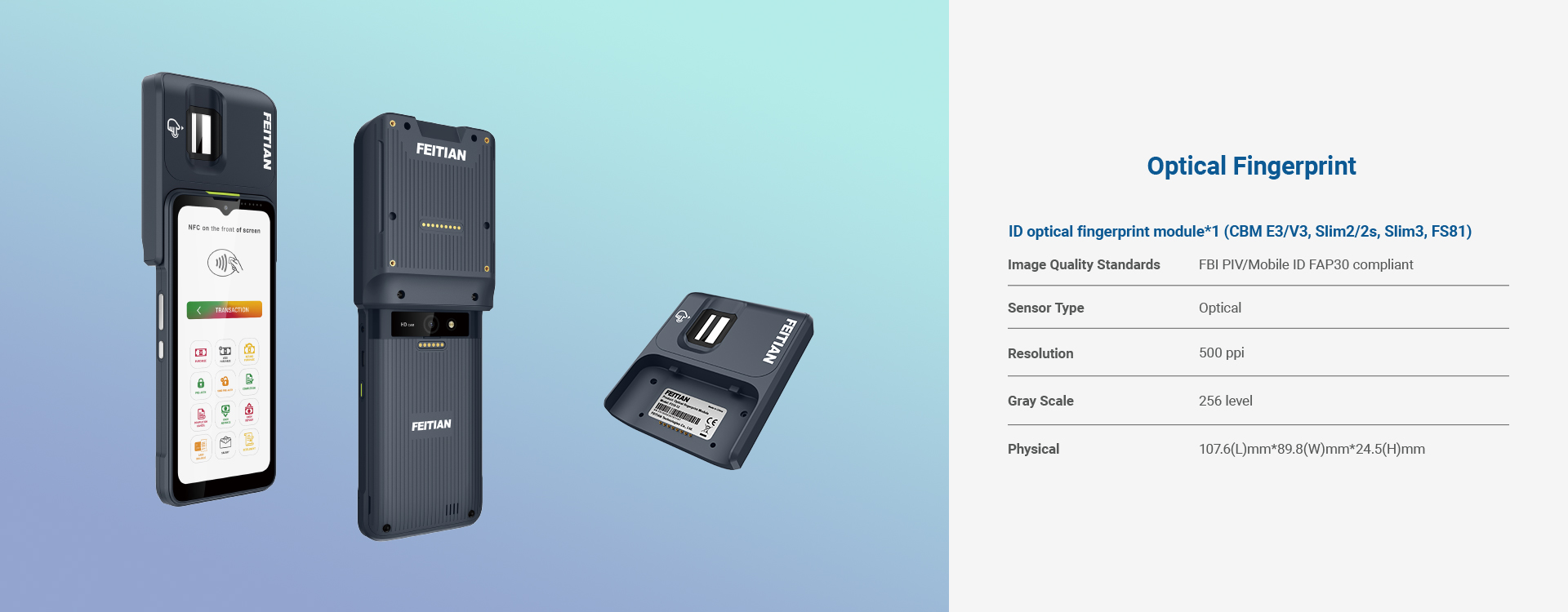

Optical Fingerprint
Optical Fingerprint

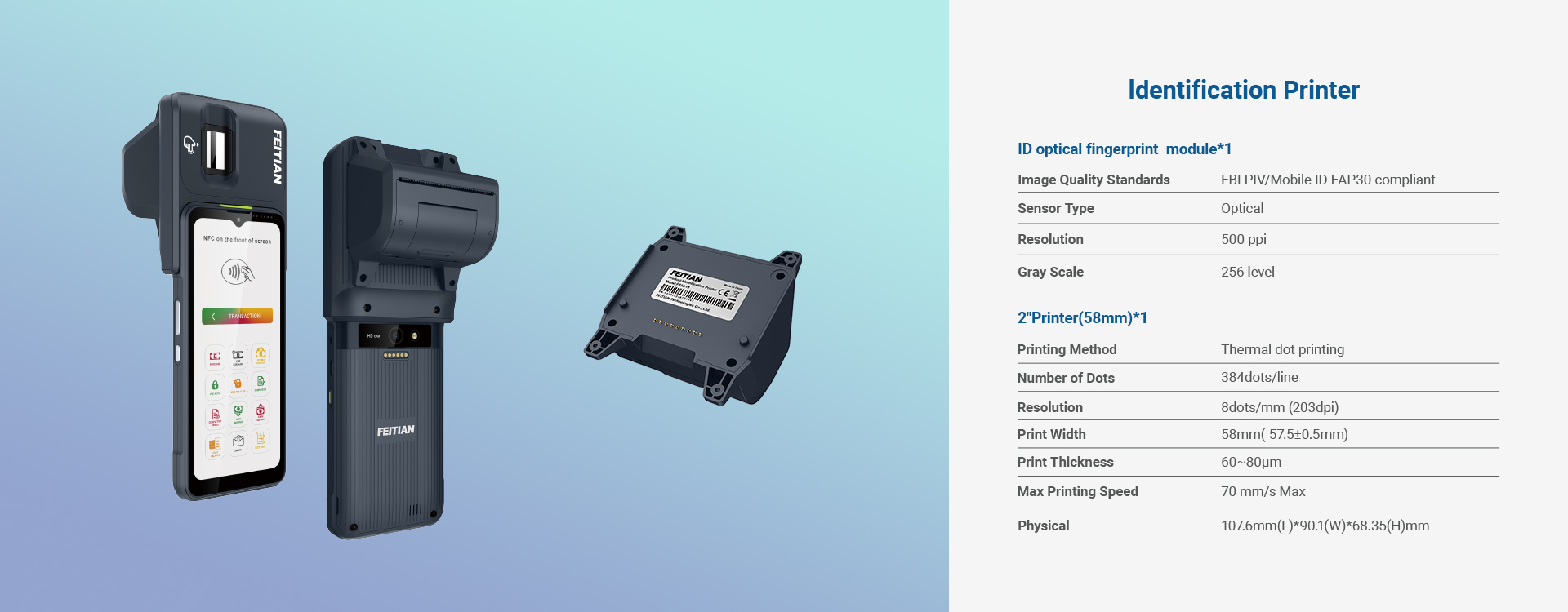

ldentification Printer
ldentification Printer

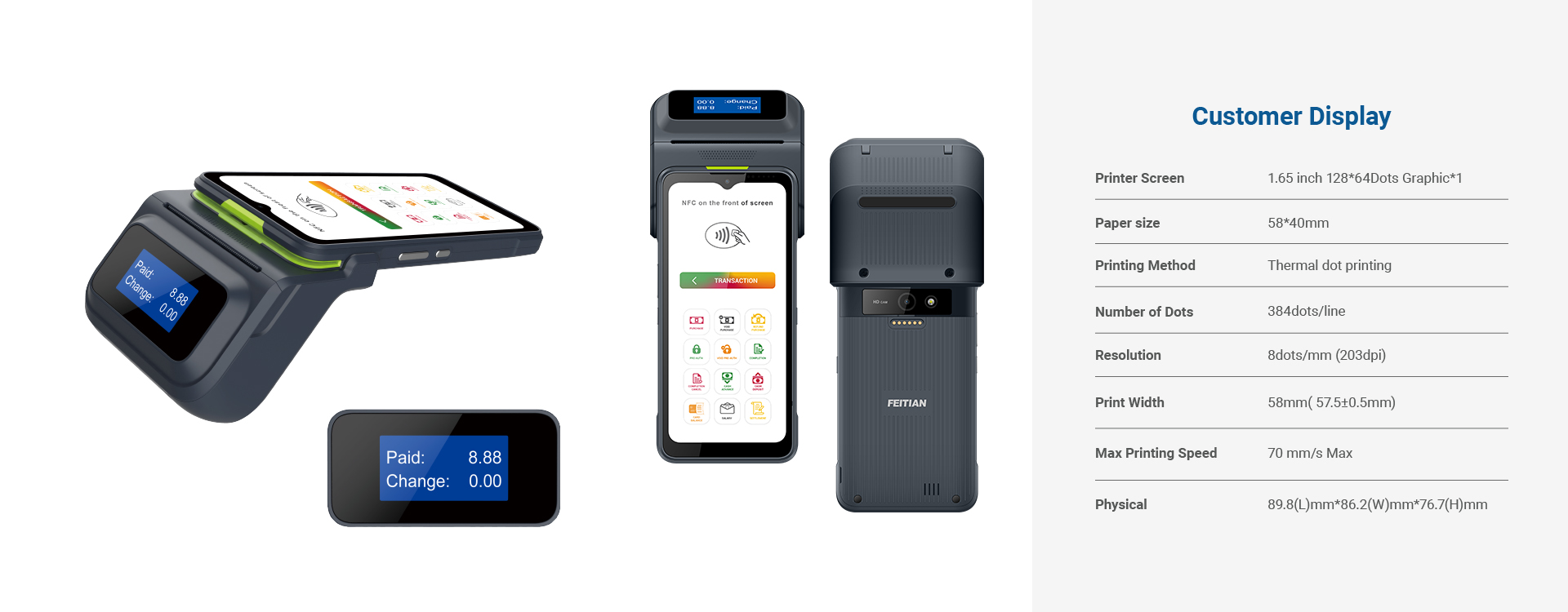

Customer Display
Customer Display

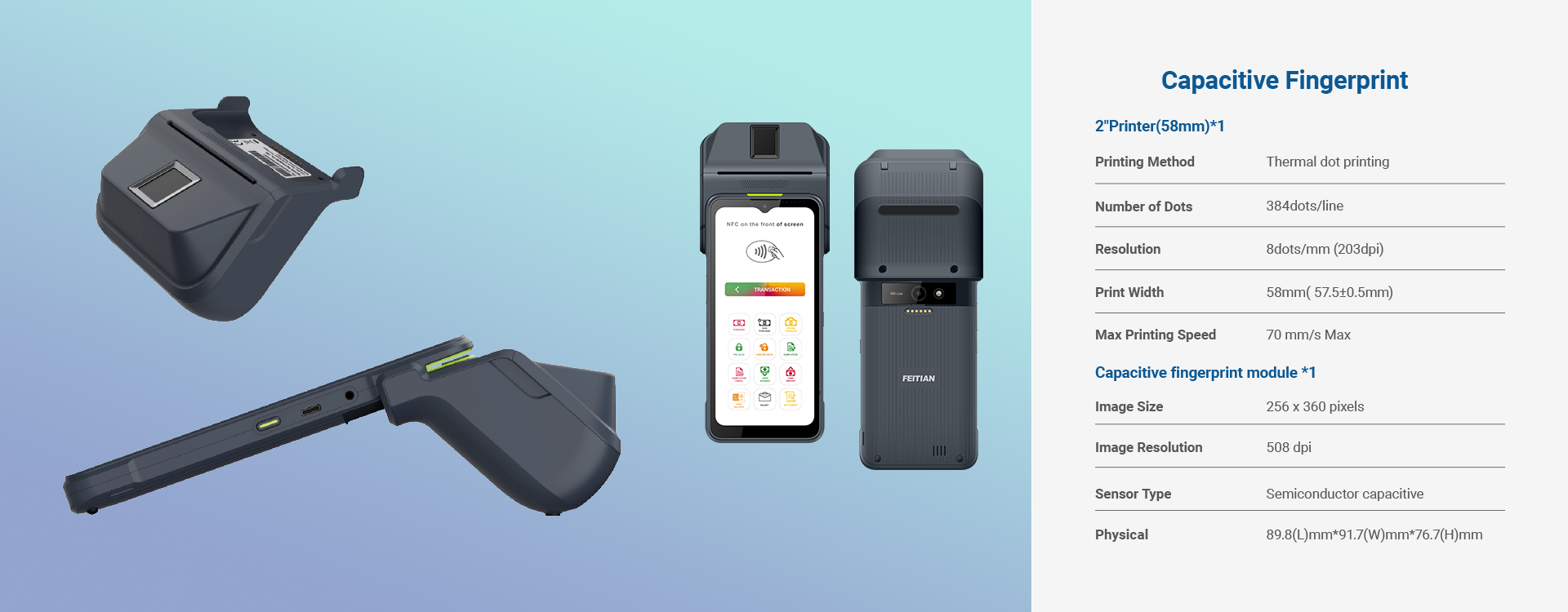

Capacitive Fingerprint
Capacitive Fingerprint

Omni-channel Payment

NFC
Payment
Stripe Card
Payment
IC card
Payment
QR Code
Payment

Extraordinary performance, excellent quality

Equipped with a powerful Quad-core processor, F310 has strong performance and reliability. It's compatible with various Android applications

Ultra-large screen for vivid viewing experience

The 6.5" HD LCM display provides you a wider vision and a better interactive experience

Multiple configuration options
PCI + IC + NFC(NO MSR)
Multiple configuration options
PCI + NFC(NO MSR, NO IC)
Multiple configuration options
Front camera 16MP AF
Face recognition camera
Previous
Next









Widely applicable scenarios

The F310 offers exceptional security, stability, and reliability across a wide range of
applications, including self-service shopping, laundry services, vending machines,
gas stations, parking lots, ticketing systems, and more.

Bank
bus
Gasstation
hospital

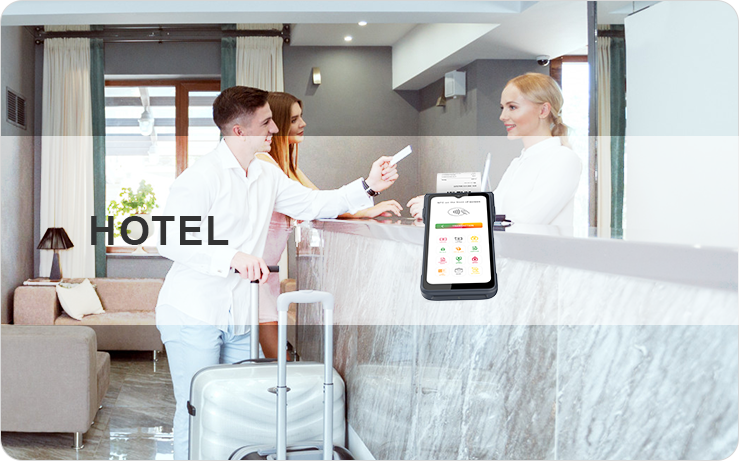

Hotel

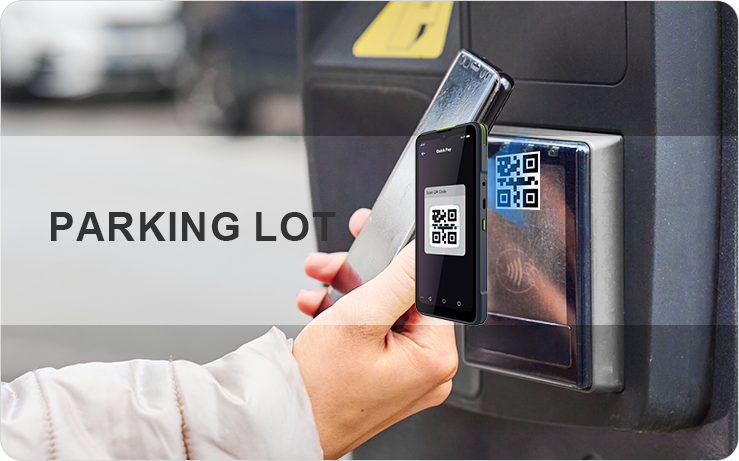

Parkinglot
Self-helpshopping
Supermarket

Applicable to various application scenarios

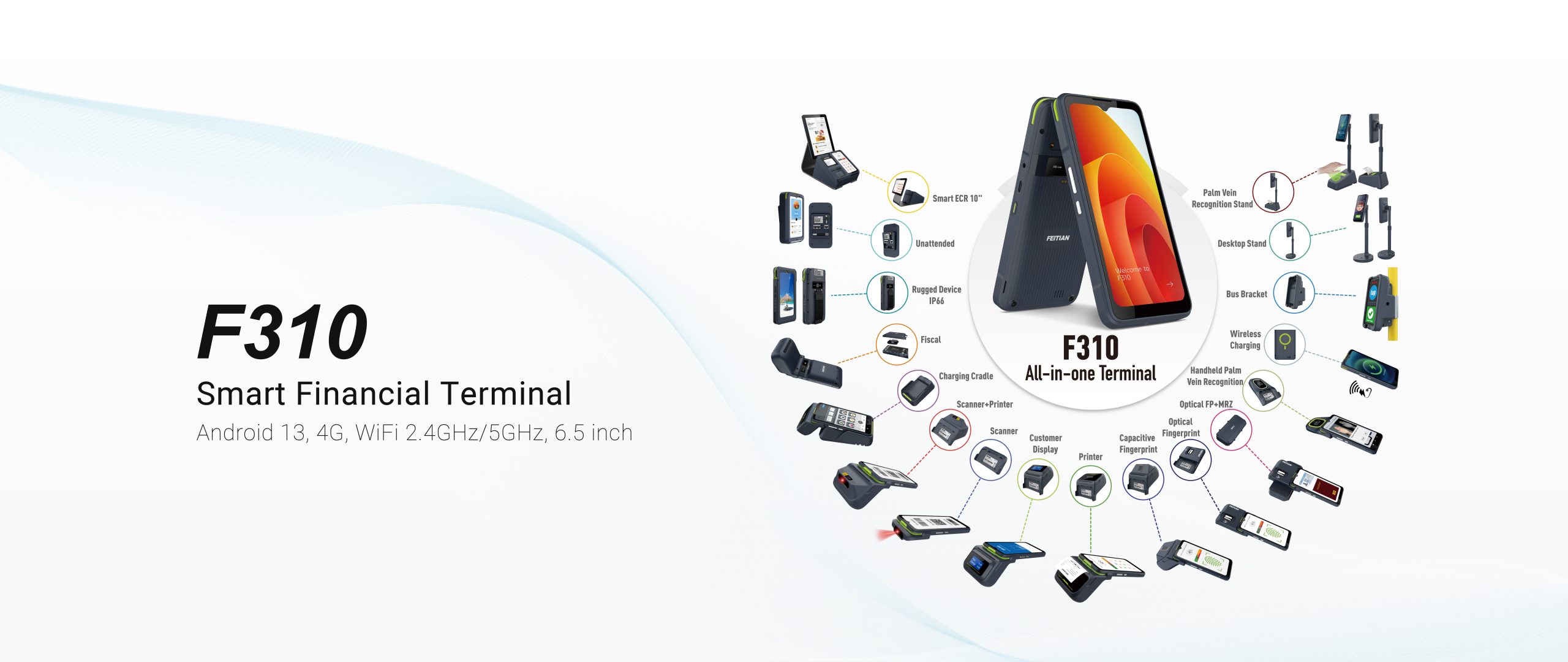

F310 Product Specification
Security OS

Android13

Processor

Quad-Core 4×2.0G, A53

Memory

2GB RAM + 16GB ROM

Physical

173mm (L) × 82.5mm (W) × 17.2mm (H)

Wifi

Wi-Fi 5: 2.4&5GHz

Bluetooth

BT5.0/BLE

GPS

GPS, BDS, Galileo, GLONASS, QZSS, SBAS

Camera

Rear: 8MP AF with Flash LED Front: 2MP FF Support 1D/2D barcode

Communications

4G/3G/2G

Display

6.5 inch, HD IPS LCD, 720*1600 Pixel, Multi-touch

Card Type

SIM*1 + PSAM*2 or SIM*2 + PSAM*1, TF card*1 (up to 1TB) (Optional: eSIM*1 + SIM*1 + PSAM*1 + TF Card*1)

Battery

3.8V/3000mAh

Magnetic

ISO/IEC 7811, ISO/IEC 7813, Track 1/2/3, Bi-directional swiping(Optional)

IC

ISO/IEC 7816, Conform to EMV L1/L2

NFC

13.56MHz, ISO/IEC 14443, ISO/IEC 18092, Type A&B, Felica, Mifare card

QR Code
Power

Input: 100-240V AC, 50/60Hz 0.35A Output: 5V DC/2.0A

Ports

Type C*1 (USB2.0, OTG), Pogopin (6PIN)*1, Pogopin (8PIN)*1

Weight

278g

Certifications

PCI, EMV L1&L2, EMV Contactless L1, Paypass, PayWave, Amex, Discover, JCB, Pure, qUICS, TQM, MIR, EFT POS, RoHS, CE, FCC, WEEE, CB, DGM, UN38.3, MSDS, NTRA-VOC, GSMA, Telec, JATE, RNIB

Download F310 brochure
